TECHNICAL DATA
Weight: 0.7 kg
Stroke: 20 mm
Traction power: up to 10 kN
SCOPE OF DELIVERY
Nosepieces: 17/36
SETTING TOOLS OVERVIEW
• TAURUS® 1
No. 1457665
No. 1457680 (with spring-loaded trigger system)
No. 1457669 (with PH 2000 spent mandrel container)
No. 1457771
No. 1457778 (with spring-loaded trigger system)
No. 1457780 (with PH 2000 spent mandrel container)
DESCRIPTION
Using the angle head 90° compact for PowerBird® and
AccuBird® allows to set all Types of standard blind rivets
up to 5 mm in diameter and aluminium up to 6 mm
diameter, depending on the tool Type. The minimum
edge clearance is 12 mm, the head length is 90 mm.

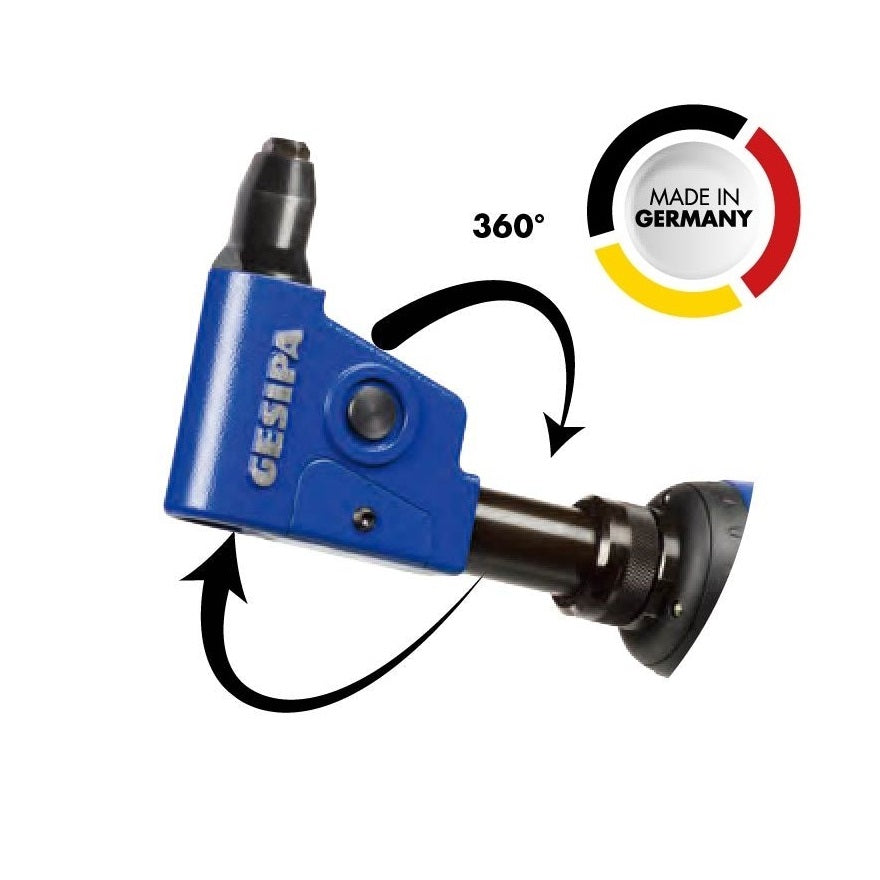

The angle head can be freely fixed in any position
aroand the AccuBird® and PowerBird®
tensile axis (360° free rotation).
APPLICATION
The angle head 90° compact is designed for use in tight
spaces. Its sturdy design allows it to apply large setting
forces when setting blind rivets even in difficult of access
work areas with up to10 kN.
ADVANTAGES
• Realisation of small edge clearances (12 mm)
• High setting force in tight installation areas
(up to 10 kN)
• Large stroke (up to20 mm)
• Simple assembly
• Compact and robust design
• Simple jaws maintenance
• Use of standard jaws
• Low vibration, even at high breaking
force level
